6th UAE Deformity Correction Course 2026

Standing radiograph alignment and deformity analysis

Annual Academic Landmark Event

6th UAE Deformity Correction Course

Advanced Principles & Hexapod Systems in Complex Lower Limb Reconstruction, Trauma, & Pediatric Orthopaedics.

18 – 20 December 2026

Metropolitan Hotel, Dubai, UAE

In Collaboration & Endorsement With

Mohammed Bin Rashid University of Medicine and Health Sciences

Practical Dry-Labs

Hands-on frame application, multiplanar deformity analysis, and computer software planning.

Expert International Faculty

Renowned deformity leaders sharing clinical insights and complex case techniques.

Interactive Case Discussions

Interactive case-based reviews for multidisciplinary discussion and peer evaluation.

Course Leadership

Course Chairman

Alexander Cherkashin, MD

Course Chairman

Mikhail Samchukov, MD

Course Convenor

Mohamed Kenawey, MD

Registration Details

Registration for the course is strictly via email. Please send your registration request to info@mepos.me.

Official Scientific Schedule

6th UAE Deformity Correction Course Program

18–20 December 2026 | Metropolitan Hotel, Dubai, UAE

Showing 0 entries

Day	Time	Duration	Topic / Presentation	Speaker	Moderator	Bookmark

Course Leadership & Invited Speakers

Faculty & Leadership

Distinguished chairmen, convenor, and international faculty presiding over lectures, case discussions, and hands-on workshops.

Course Chairmen

Course Chairman

Alexander Cherkashin, MD

Expert in lower limb deformity correction & circular hexapod frame technologies.

Course Chairman

Mikhail Samchukov, MD

Pioneer in biomechanics, limb reconstruction, and complex osteotomy design.

Course Convenor

Mohamed Kenawey, MD

Lead convener and coordinator of the scientific deformity curriculum.

Faculty Members

Lower Limb Alignment Guide

Clinical References

Quick-reference measurements, normal ranges, alignment diagrams, and limb-length calculations for course use.

Lower limb

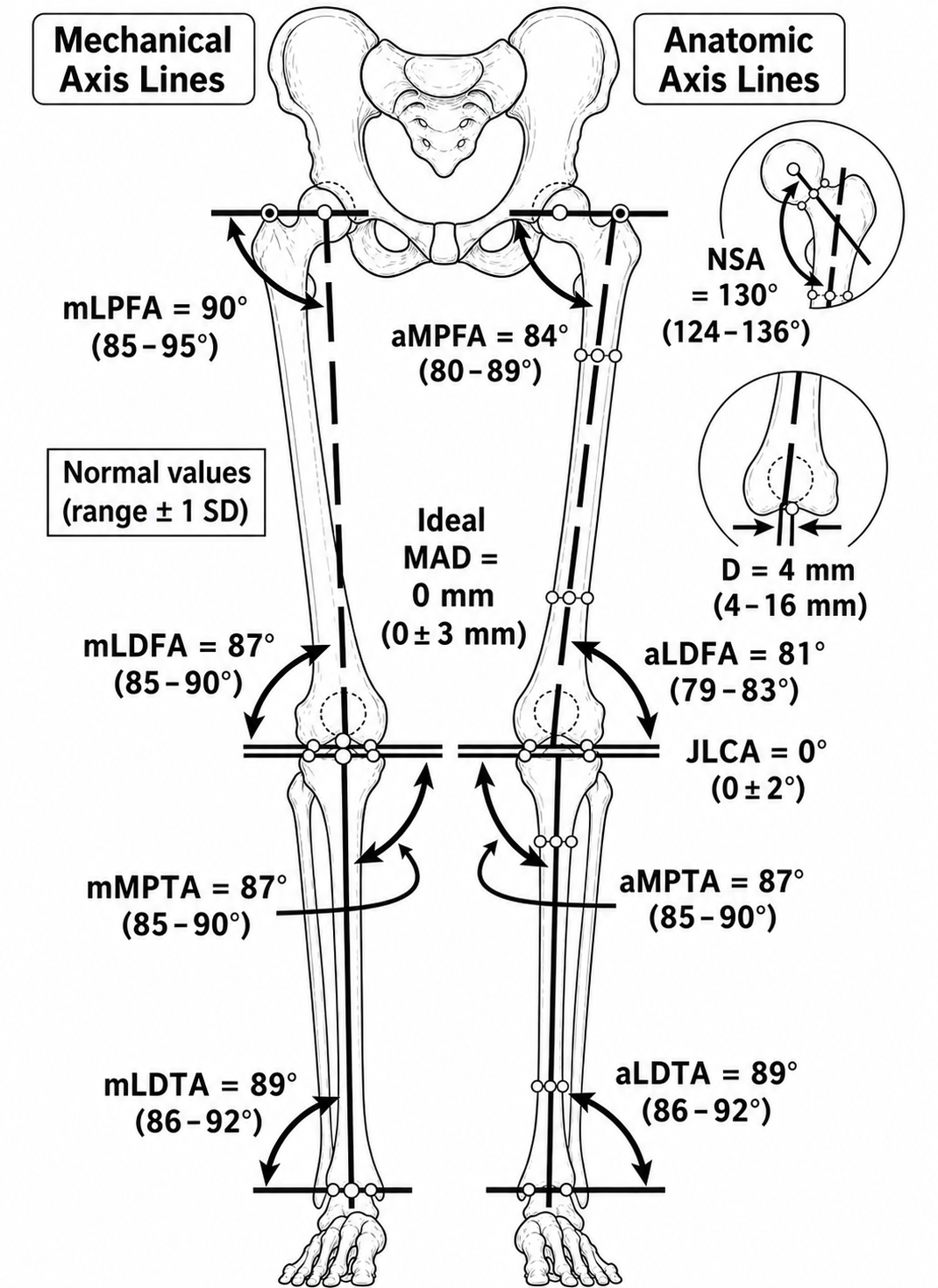

Standard Measurements of the Lower Limbs: Frontal Plane

Mechanical and anatomic axis lines, joint orientation angles, normal values, and ranges.

Mechanical Axis Lines

Acronym	Complete name	Average normal value and range
mLPFA	Mechanical lateral proximal femoral angle	90° (85-95°)
mLDFA	Mechanical lateral distal femoral angle	87° (85-90°)
mMPTA	Mechanical medial proximal tibial angle	87° (85-90°)
mLDTA	Mechanical lateral distal tibial angle	89° (86-92°)

Anatomic Axis Lines

Acronym	Complete name	Average normal value and range
aMPFA	Anatomic medial proximal femoral angle	84° (80-89°)
aLDFA	Anatomic lateral distal femoral angle	81° (79-83°)
aMPTA	Anatomic medial proximal tibial angle	87° (85-90°)
aLDTA	Anatomic lateral distal tibial angle	89° (86-92°)

Lower limb

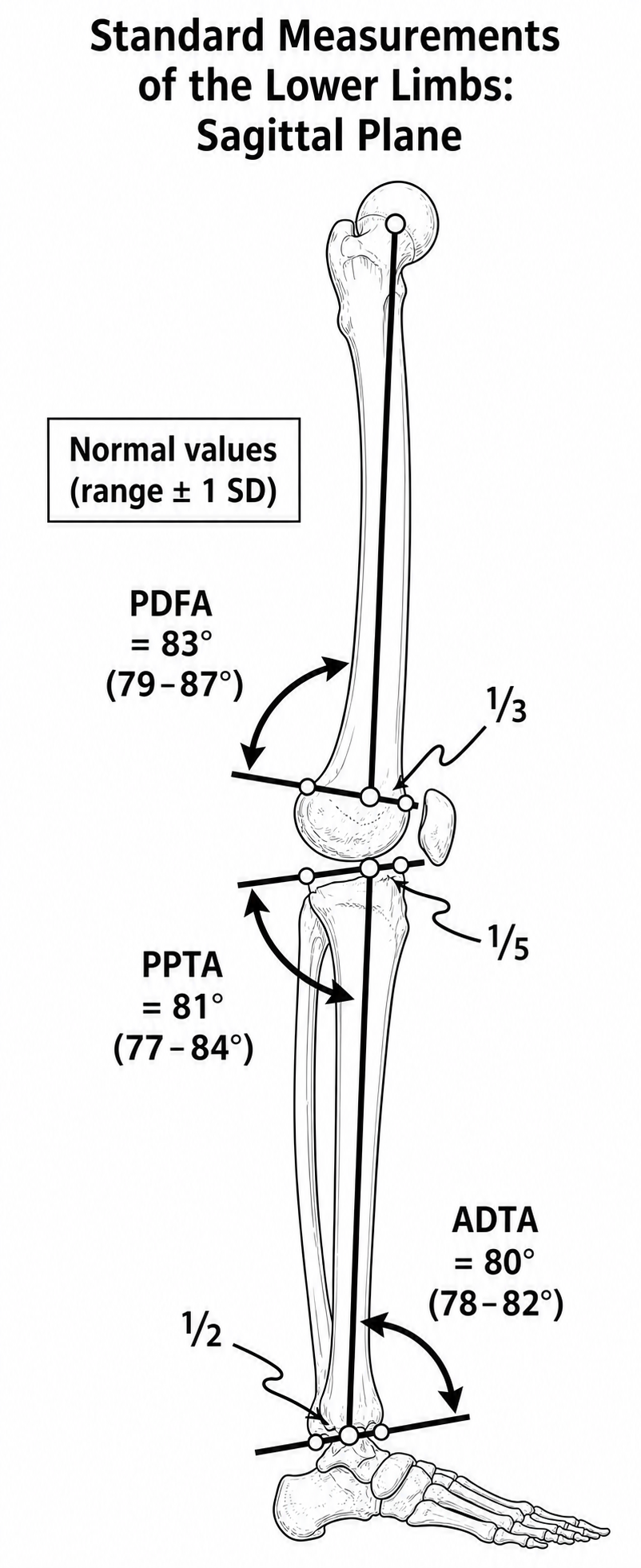

Standard Measurements of the Lower Limbs: Sagittal Plane

Sagittal joint angles, mechanical-axis alignment, and normal reference ranges.

Sagittal Plane Joint Angles

Acronym	Complete name	Average normal value and range
PDFA	Posterior distal femoral angle	83° (79-87°)
PPTA	Posterior proximal tibial angle	81° (77-84°)
ADTA	Anterior distal tibial angle	80° (78-82°)

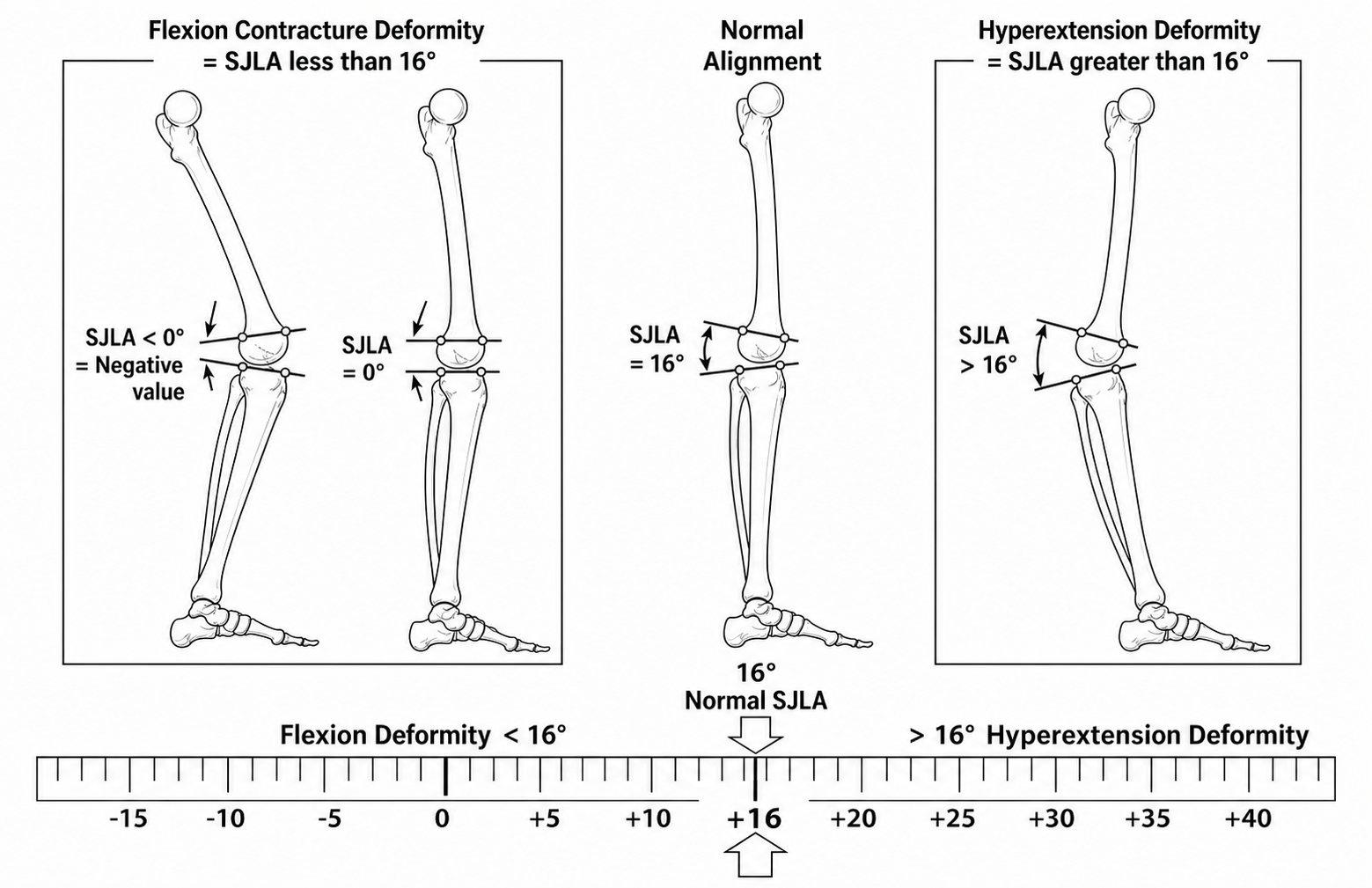

SJLA	Sagittal joint line angle	16° ± 3°

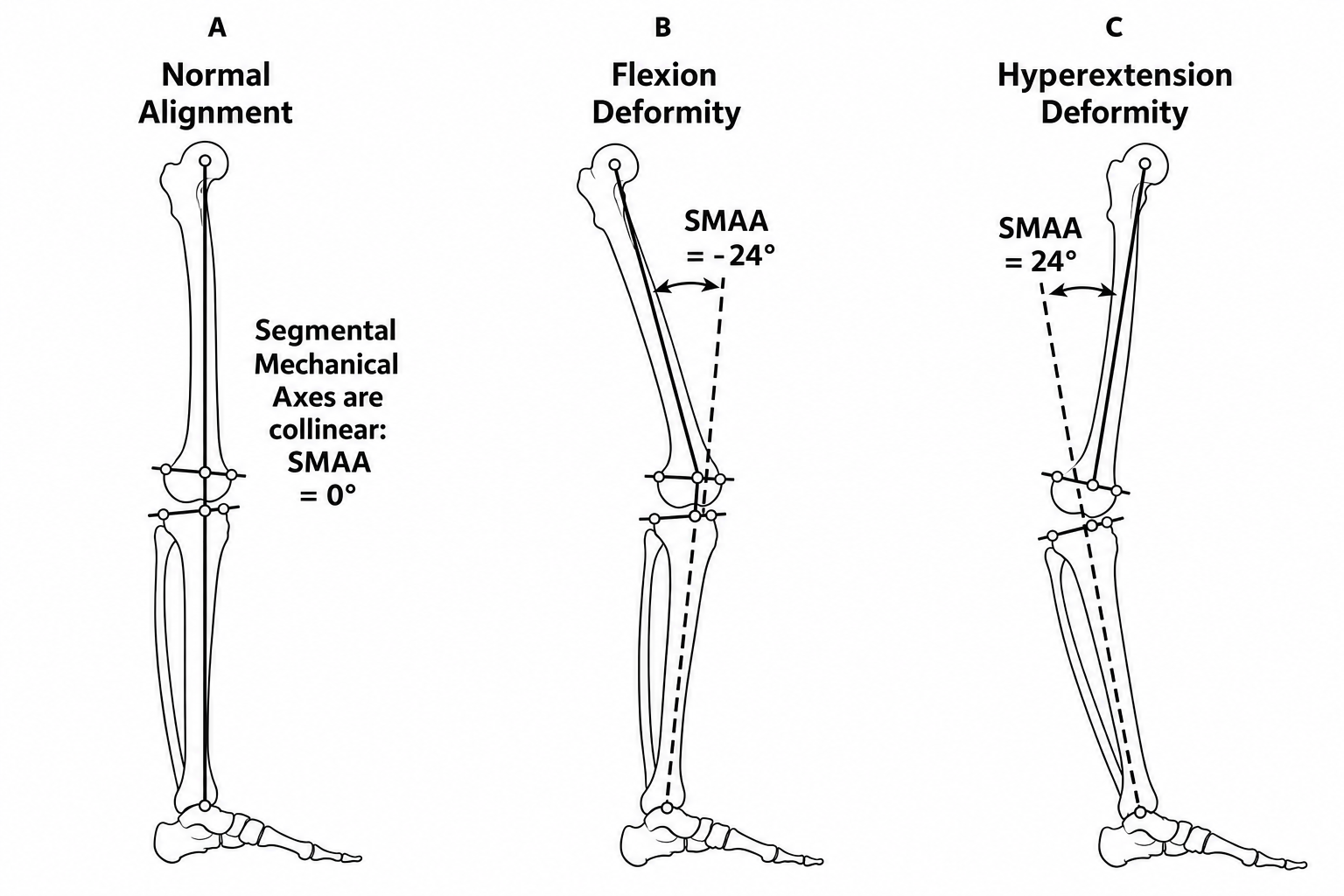

SMAA	Sagittal mechanical axes angle	0° ± 2°

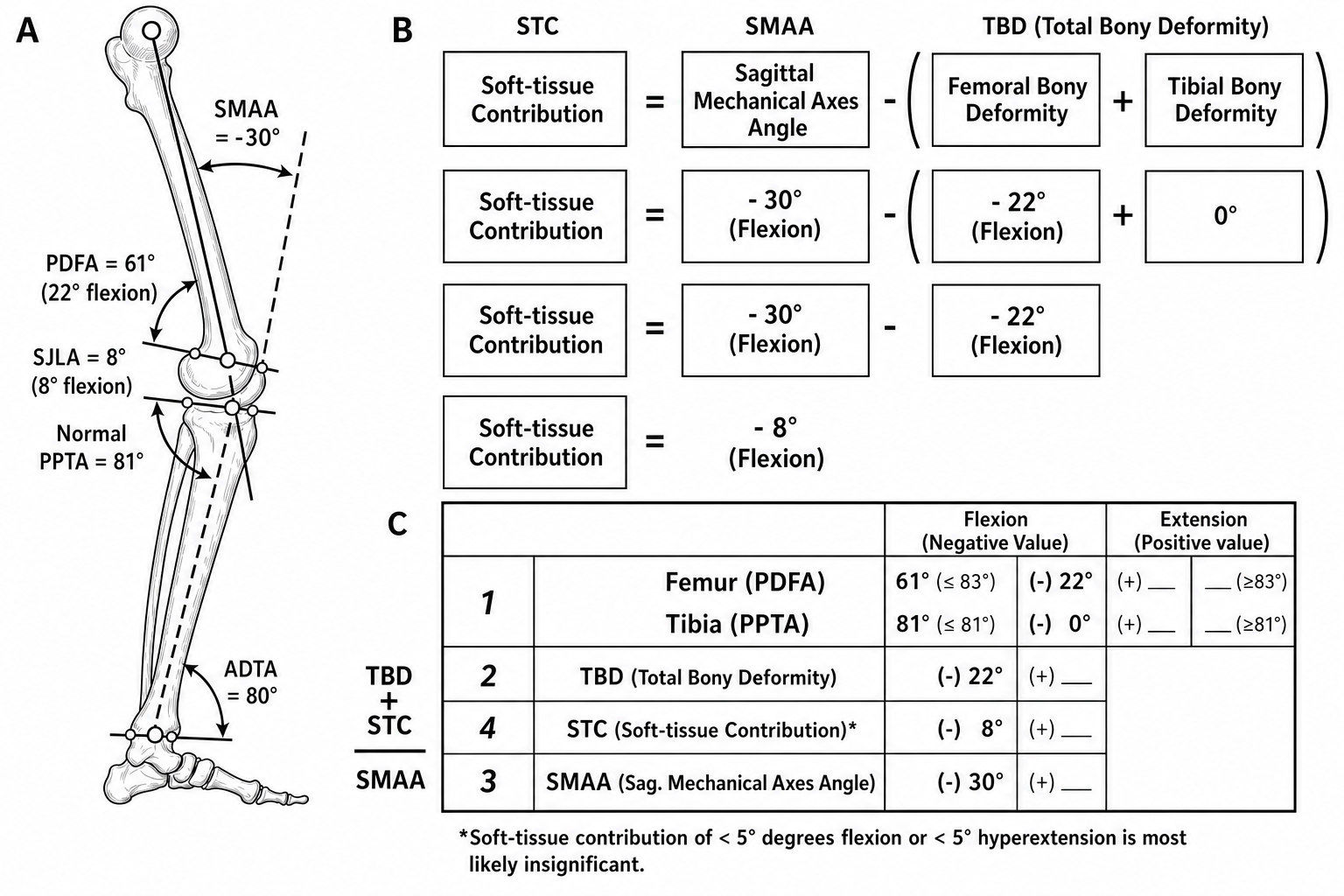

Sagittal-plane lower-limb measurement figure

Limb length

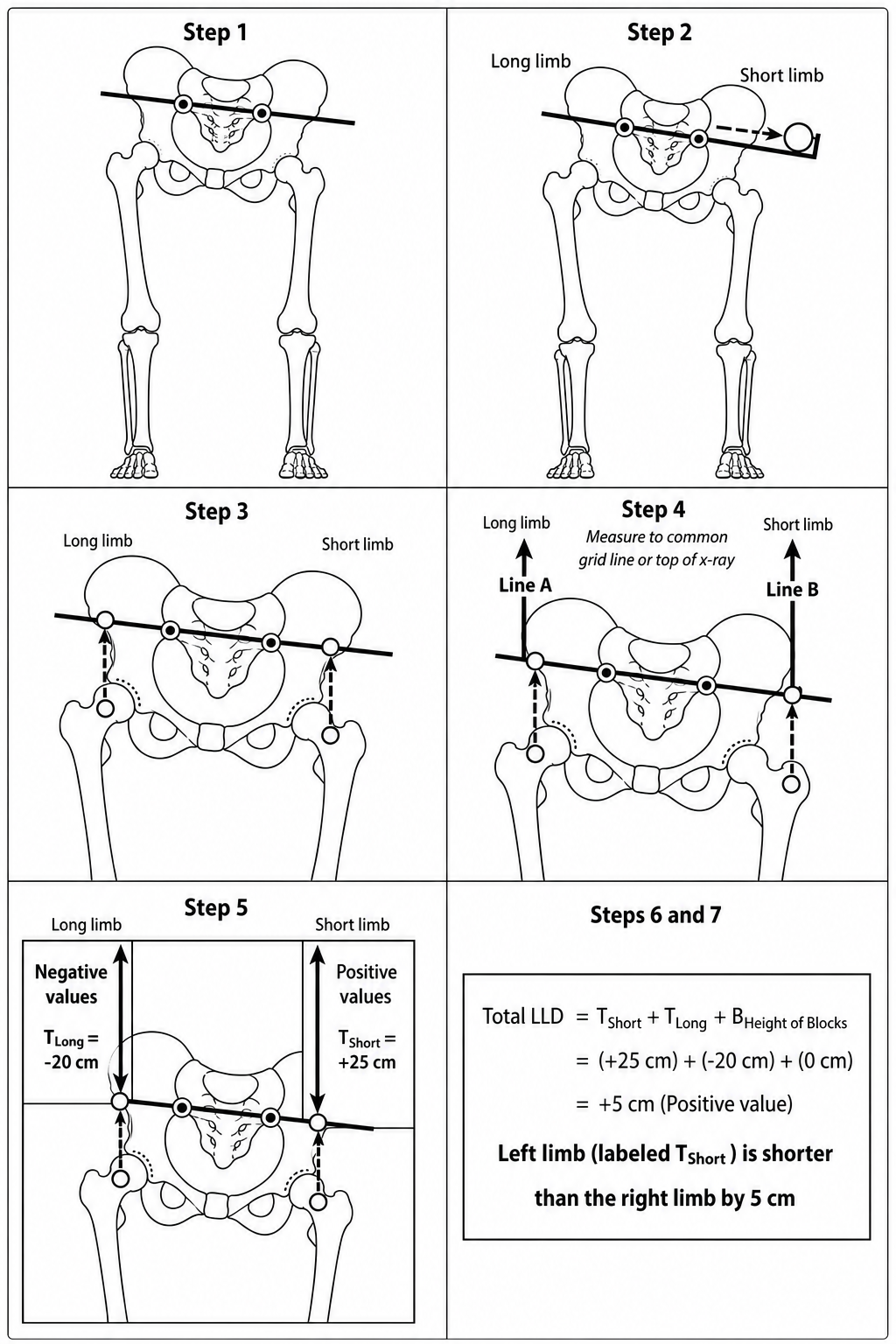

MAP the LLD

A step-by-step radiographic method for identifying and calculating total limb-length discrepancy.

Practical method

Draw a pelvic reference line between points placed at the inferior margins of both sacroiliac joints.
Identify the limb that appears shorter on this radiograph: a ball imagined on the pelvic line would roll toward that side.
Mark both femoral-head centers, then project equal vertical lines from the pelvic line to a shared horizontal grid line.
Measure both lines. Assign the longer measurement to T_Short as a positive value and the shorter measurement to T_Long as a negative value.
Add any block or lift height: positive beneath the apparent short limb and negative beneath the apparent long limb.

Calculation

Total LLD = T_Short + T_Long + block height

Example: +20 cm + (-16 cm) + 0 cm = +4 cm. The positive result means the limb labelled T_Short is 4 cm shorter.

MAP the LLD illustrated measurement steps

Foot and ankle

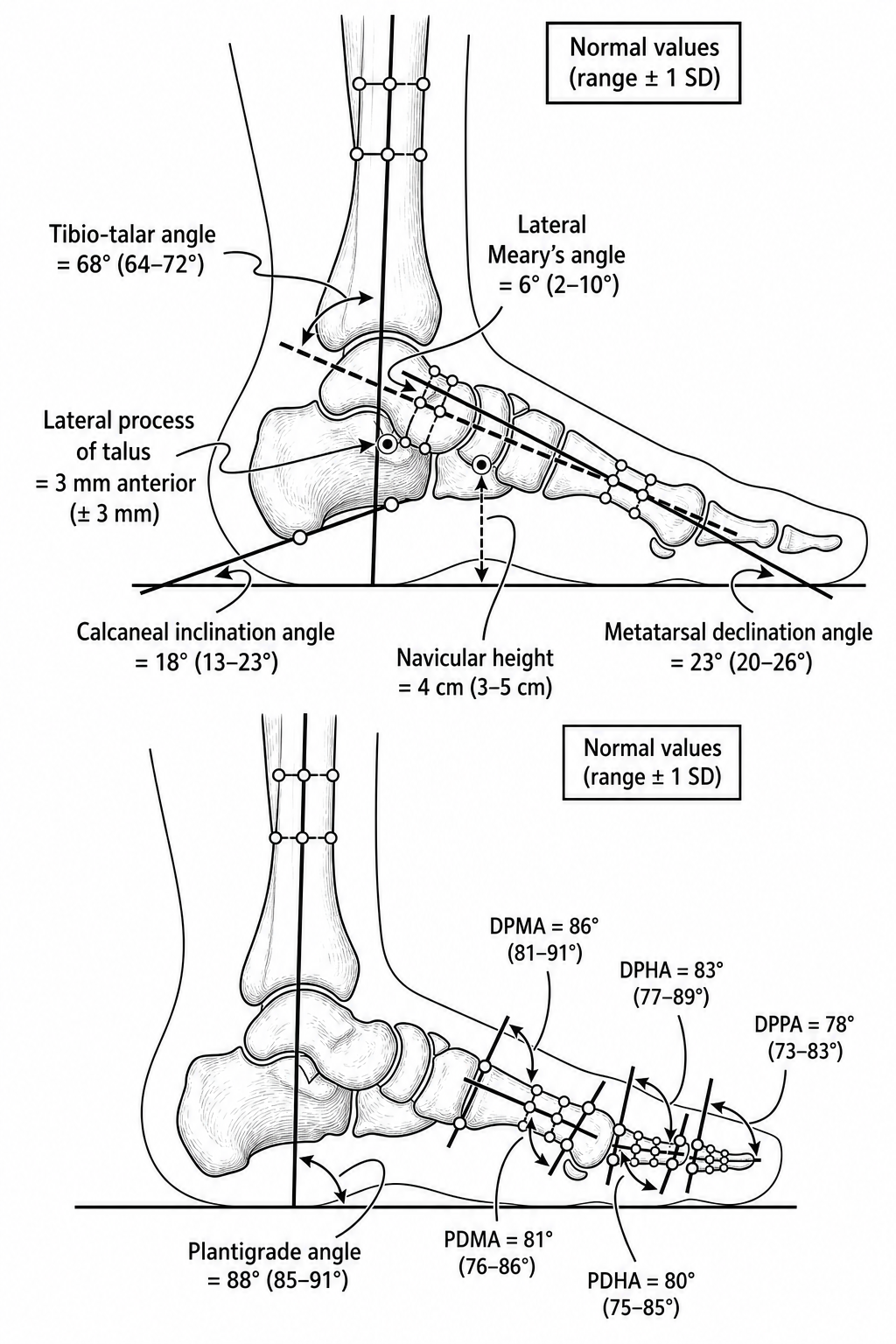

Standard Measurements of the Foot and Ankle: Lateral View

Lateral-view axes, joint angles, landmarks, normal values, and reference ranges.

Acronym	Complete name	Average normal value (range ± 1 SD)
CIA	Calcaneal inclination angle	18° (13-23°)
DPHA	Dorsal proximal hallux angle	83° (77-89°)
DPMA	Dorsal proximal metatarsal angle	86° (81-91°)
DPPA	Dorsal proximal phalangeal angle	78° (73-83°)
-	Lateral Meary's angle	6° (2-10°)
-	Lateral process of talus	3 mm anterior (± 3 mm)
-	Metatarsal declination angle	23° (20-26°)
-	Navicular height	4 cm (3-5 cm)
PDHA	Plantar distal hallux angle	80° (75-85°)
PDMA	Plantar distal metatarsal angle	81° (76-86°)
-	Plantigrade angle	88° (85-91°)
-	Tibio-talar angle	68° (64-72°)

Foot

Standard Measurements of the Foot: AP View

AP-view axes and angles with average normal values, ranges, and anatomical landmarks.

Acronym	Complete name	Average normal value (range ± 1 SD)
1st mIMA	1st mechanical intermetatarsal angle	9° (6-12°)
4th IMA	4th intermetatarsal angle	9° (6-12°)
-	AP Meary's angle	7° (3-11°)
HAA	Hallux abductus angle	8° (4-12°)
HIA	Hallux interphalangeal angle	11° (7-15°)
LDHA	Lateral distal hallux angle	88° (84-92°)
LDMA	Lateral distal metatarsal angle	90° (87-93°)
MAD	Mechanical axis deviation	4 mm lateral (2-6 mm lateral)
MPHA	Medial proximal hallux angle	95° (92-98°)
MPMA	Medial proximal metatarsal angle	92° (88-96°)
MPPA	Medial proximal phalangeal angle	95° (91-99°)
-	Metatarsal parabola angle	140° (135-145°)
MAA	Metatarsus adductus angle	11° (6-16°)
TCA	Talo-calcaneal angle	21° (15-27°)

Foot and ankle

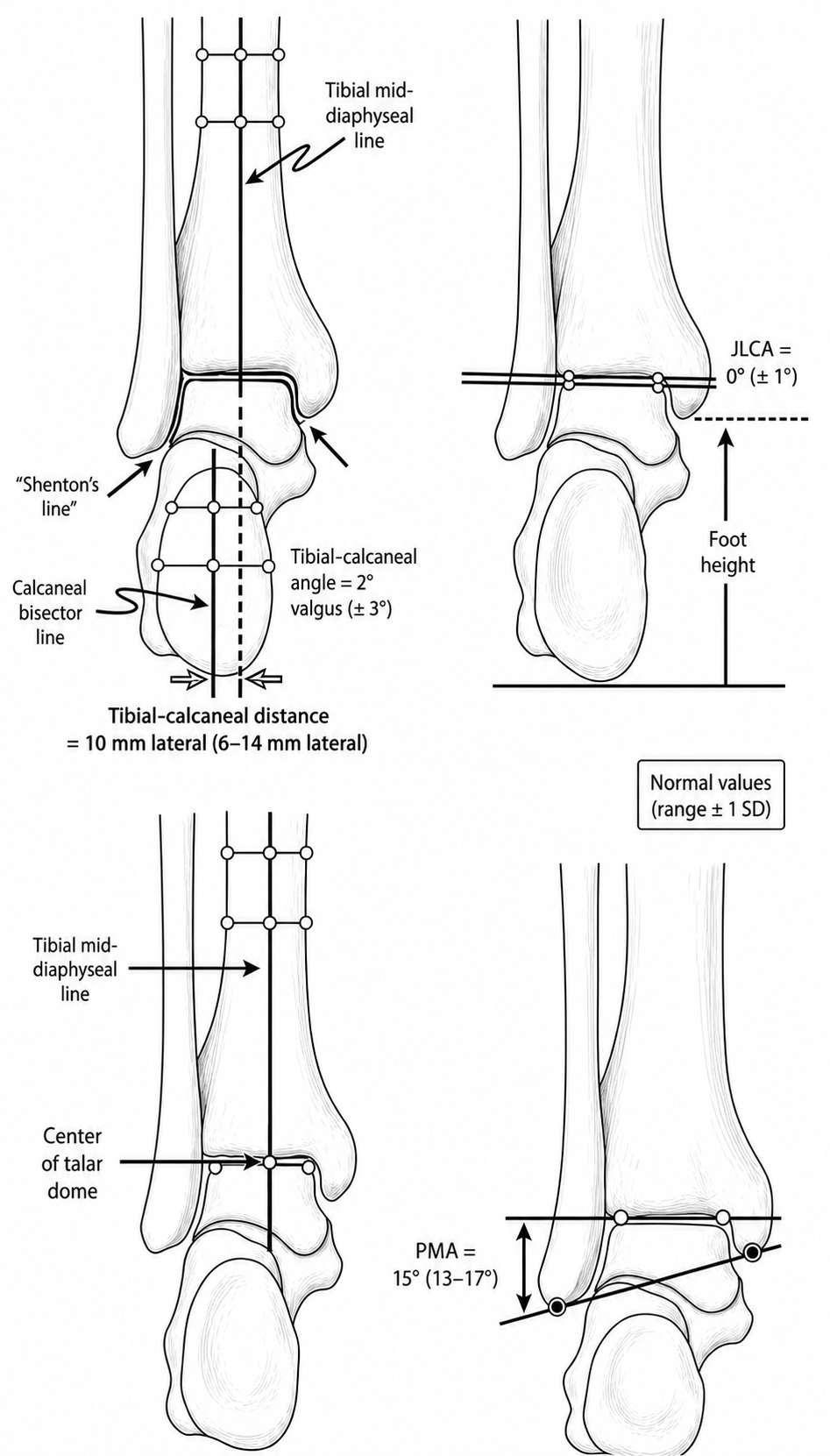

Standard Measurements of the Foot and Ankle: Axial View

Axial-view hindfoot alignment and angular measurements with normal ranges.

Acronym	Complete name	Average normal value (range ± 1 SD)
JLCA of tibia and talus	Joint line convergence angle of tibia and talus	0° ± 1°
PMA	Plafond malleolar angle	15° (13-17°)
-	Tibial-calcaneal angle	2° valgus (± 3°)
-	Tibial-calcaneal distance	10 mm lateral (6-14 mm lateral)
